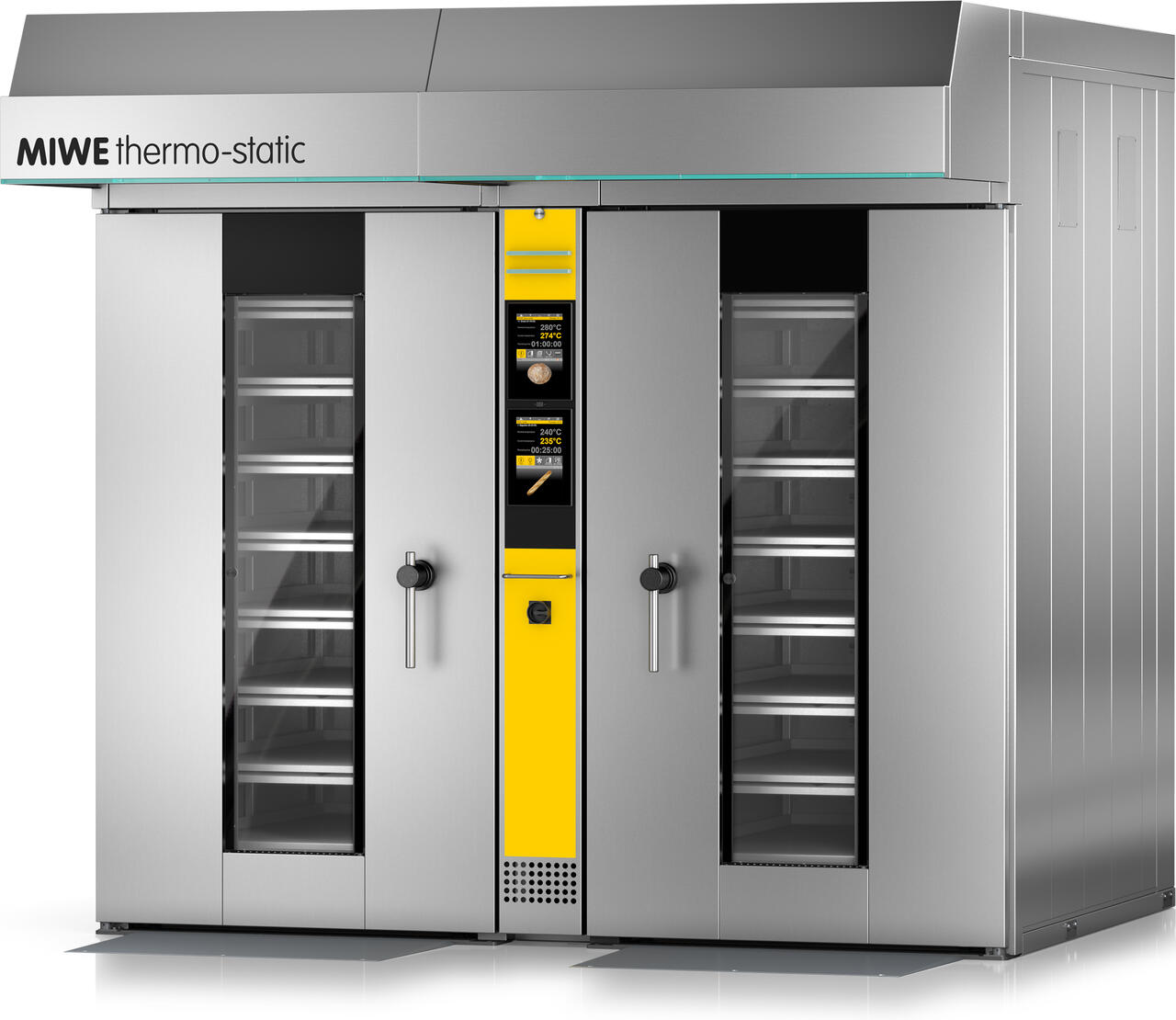

MIWE thermo-static integro

Thermal oil expertise

The wagon oven for gentle baking

Gentle baking characteristics and great evenness are its strengths. Thermal oil heated wagon oven with steady baking atmosphere. That leads to fewer baking losses and longer freshness, optimal crust formation, better oven spring and excellent crumb structure. For two or three trollies with seven to ten trays in three tray sizes. Suitable for baking the entire product range, from heavy rye breads to small wheat rolls.

The wagon oven for gentle baking

Gentle baking characteristics and great evenness are its strengths. Thermal oil heated wagon oven with steady baking atmosphere. That leads to fewer baking losses and longer freshness, optimal crust formation, better oven spring and excellent crumb structure. For two or three trollies with seven to ten trays in three tray sizes. Suitable for baking the entire product range, from heavy rye breads to small wheat rolls.

Versions of the MIWE thermo-static integro

One-of-a-kind technologies in the MIWE thermo-static integro

What makes MIWE thermo-static integro so unique

Exclusive to MIWE: Atmospheric baking

Put an end to weather-induced problems. Instead, achieve optimal evenness and better baking quality, whatever the weather. That is guaranteed by MIWE’s atmospheric baking. Standard in the MIWE thermo-static.

Superior steam technology: MIWE atmo-jet®

The water is transformed into tiny droplets using compressed air before it is fed into the steam device. That creates high-pressure saturated steam particularly efficiently and rapidly for optimal product quality and best sheen.

Real stone-oven bread made easy

The MIWE assist automated loading system with a stone plate frame (optional) takes a load off. And it lets you market the bread baked on it as “stone-oven bread”.

Ergonomics in its purest form

No matter where you look: The MIWE thermo-static impresses with great ergonomic details: The big display makes operation easy, the remote display with modern LED technology (also on the optional exhaust hood) shows you the current oven status from a distance, you only have to lean the optional soft-close automatic door, with the dynamic floor seal for effective steam removal, against the frame – it closes automatically from there without manual locking. It is just as easy to open.

Even more crispness: the turbo system

Where more crispness is required, we recommend the two-stage turbo system (optional), which adds convection to the chamber and is simple to integrate into the baking program. Stage one for gentle browning, stage two for power air circulation and forced de-steaming.

How the MIWE thermo-static integro helps you save energy

Saving energy is more important than ever. MIWE has the answers.

Standarddatei

Reduced energy consumption thanks to pinpoint steam technology MIWE atmo-jet

Standarddatei

MIWE atmospheric baking: raises product quality, lowers energy costs

Standarddatei

Particularly economical LED status lighting

Experience the MIWE thermo-static integro from all perspectives in this 3D model.

Would you like to see how the MIWE thermo-static integro would fit into your bakery?
Simply activate the augmented reality feature (AR) with your smartphone or tablet!

MIWE thermo-static

Anyone who is already baking with thermal oil, or plans to use multiple thermal oil ovens, should choose a central heating boiler. The MIWE thermo-static is your ideal oven for this application.

What our customers say

"Technology is to help us make the hard work easier without reducing quality"
Badische Backstub´
Ettlingen, Germany
"In the long term this saves us energy while achieving top quality of baked goods"
Bakery Jägers
Borken, Germany
"An advantage over keys and rotary regulators"
Bakery Plücker
Waldeck, Germany
"We now have everything from a single source, and just one contact"
Bakery Schmitz & Nittenwilm
Cologne, Germany
"Sophisticated technology and comprehensive monitoring"
Bakery Staib
Ulm, Germany
"Baking like in olden times does not mean ignoring modern technology"
Bakery Treiber
Steinenbronn, Germany
1
0
1
2
3
3

Everything you need to know

Accessories

  • Exhaust hood
  • Baking trolley
  • Stone slab system
  • MIWE slide
  • MIWE cool-down system for operation with temperature curves and fast product changeover Exhaust hood

Options

  • Stone slab frame
  • Two-stage turbo system
  • Softclose automatic door with dynamic bottom seal
  • Optionally magnetic or axial face seal pump
  • Connection to MIWE eco:nova or external steam removal accelerator possible

Technical information

2 x 2 trolleys / 80 x 120

Number of decks

2 x 8

2 x 9

2 x 10

Model

TSI duo 8.0812

Trolley

2 x 2

Nominal dimensions of each level in cm

80 / 120

Number of decks

2 x 8

Baking tray size

60 x 80

    Number of baking trays

    2 x 16

    Baking area in m²

    2 x 8

    Max. product height in cm

    16

    Distance between heating plates in cm

    20

    Dimensions in cm (W x D x H)

    264 x 282 x 320

      Model

      TSI duo 9.0812

      Trolley

      2 x 2

      Nominal dimensions of each level in cm

      80 / 120

      Number of decks

      2 x 9

      Baking tray size

      60 x 80

        Number of baking trays

        2 x 18

        Baking area in m²

        2 x 9

        Max. product height in cm

        14

        Distance between heating plates in cm

        17

        Dimensions in cm (W x D x H)

        264 x 282 x 320

          Model

          TSI duo 10.0812

          Trolley

          2 x 2

          Nominal dimensions of each level in cm

          80 / 120

          Number of decks

          2 x 10

          Baking tray size

          60 x 80

            Number of baking trays

            2 x 20

            Baking area in m²

            2 x 10

            Max. product height in cm

            12

            Distance between heating plates in cm

            15

            Dimensions in cm (W x D x H)

            264 x 282 x 320

              2 x 2 trolleys / 100 x 120

              Number of decks

              2 x 8

              2 x 9

              2 x 10

              Model

              TSI duo 8.1012

              Trolley

              2 x 2

              Nominal dimensions of each level in cm

              100 / 120

              Number of decks

              2 x 8

              Baking tray size

              60 x 100

                Number of baking trays

                2 x 16

                Baking area in m²

                2 x 10

                Max. product height in cm

                16

                Distance between heating plates in cm

                20

                Dimensions in cm (W x D x H)

                304 x 282 x 320

                  Model

                  TSI duo 9.1012

                  Trolley

                  2 x 2

                  Nominal dimensions of each level in cm

                  100 / 120

                  Number of decks

                  2 x 9

                  Baking tray size

                  60 x 100

                    Number of baking trays

                    2 x 18

                    Baking area in m²

                    2 x 11

                    Max. product height in cm

                    14

                    Distance between heating plates in cm

                    17

                    Dimensions in cm (W x D x H)

                    304 x 282 x 320

                      Model

                      TSI duo 10.1012

                      Trolley

                      2 x 2

                      Nominal dimensions of each level in cm

                      100 / 120

                      Number of decks

                      2 x 10

                      Baking tray size

                      60 x 100

                        Number of baking trays

                        2 x 20

                        Baking area in m²

                        2 x 12

                        Max. product height in cm

                        12

                        Distance between heating plates in cm

                        15

                        Dimensions in cm (W x D x H)

                        304 x 282 x 320

                          2 x 3 trolleys / 80 x 190

                          Number of decks

                          2 x 8

                          2 x 9

                          2 x 10

                          Model

                          TSI duo 8.0819

                          Trolley

                          2 x 3

                          Nominal dimensions of each level in cm

                          80 / 190

                          Number of decks

                          2 x 8

                          Baking tray size

                          60 x 80

                            Number of baking trays

                            2 x 24

                            Baking area in m²

                            2 x 12

                            Max. product height in cm

                            16

                            Distance between heating plates in cm

                            20

                            Dimensions in cm (W x D x H)

                            264 x 356.5 x 330

                              Model

                              TSI duo 9.0819

                              Trolley

                              2 x 3

                              Nominal dimensions of each level in cm

                              80 / 190

                              Number of decks

                              2 x 9

                              Baking tray size

                              60 x 80

                                Number of baking trays

                                2 x 27

                                Baking area in m²

                                2 x 13.5

                                Max. product height in cm

                                14

                                Distance between heating plates in cm

                                17

                                Dimensions in cm (W x D x H)

                                264 x 356.5 x 330

                                  Model

                                  TSI duo 10.0819

                                  Trolley

                                  2 x 3

                                  Nominal dimensions of each level in cm

                                  80 / 190

                                  Number of decks

                                  2 x 10

                                  Baking tray size

                                  60 x 80

                                    Number of baking trays

                                    2 x 30

                                    Baking area in m²

                                    2 x 15

                                    Max. product height in cm

                                    12

                                    Distance between heating plates in cm

                                    15

                                    Dimensions in cm (W x D x H)

                                    264 x 356.5 x 330

                                      2 x 3 trolleys / 100 x 190

                                      Number of decks

                                      2 x 8

                                      2 x 9

                                      2 x 10

                                      Model

                                      TSI duo 8.1019

                                      Trolley

                                      2 x 3

                                      Nominal dimensions of each level in cm

                                      100 / 190

                                      Number of decks

                                      2 x 8

                                      Baking tray size

                                      60 x 100

                                        Number of baking trays

                                        2 x 24

                                        Baking area in m²

                                        2 x 15

                                        Max. product height in cm

                                        16

                                        Distance between heating plates in cm

                                        20

                                        Dimensions in cm (W x D x H)

                                        304 x 356.5 x 330

                                          Model

                                          TSI duo 9.1019

                                          Trolley

                                          2 x 3

                                          Nominal dimensions of each level in cm

                                          100 / 190

                                          Number of decks

                                          2 x 9

                                          Baking tray size

                                          60 x 100

                                            Number of baking trays

                                            2 x 27

                                            Baking area in m²

                                            2 x 16.5

                                            Max. product height in cm

                                            14

                                            Distance between heating plates in cm

                                            17

                                            Dimensions in cm (W x D x H)

                                            304 x 356.5 x 330

                                              Model

                                              TSI duo 10.1019

                                              Trolley

                                              2 x 3

                                              Nominal dimensions of each level in cm

                                              100 / 190

                                              Number of decks

                                              2 x 10

                                              Baking tray size

                                              60 x 100

                                                Number of baking trays

                                                2 x 30

                                                Baking area in m²

                                                2 x 18

                                                Max. product height in cm

                                                12

                                                Distance between heating plates in cm

                                                15

                                                Dimensions in cm (W x D x H)

                                                304 x 356.5 x 330

                                                  Special features

                                                  • MIWE atmo-jet steam technology
                                                  • MIWE cool-down system
                                                  • MIWE atmospheric baking
                                                  • MIWE assist
                                                  • Thermal oil heated wagon oven
                                                  • Even flow of heat
                                                  • Integrated steam device
                                                  • LED status light
                                                  • Large touch screen with colour display
                                                  • Connection to energy recovery systems:
                                                  • MIWE eco:nova
                                                  • Hygienic, flat surfaces
                                                  • Two operating modes: Easy mode, Professional mode
                                                  • One-piece base
                                                  • Completely splash-proof on the outside
                                                  • Door glass panels can be opened for cleaning
